The KuDo 6LTM and KuDo 6TLTM
U.S. Pat. No. 11/193636
The KuDo 6L™ & KuDo 6TL™ troffer luminaire is designed for use in lay-in T-Bar grids. Suitable for commercial, institutional, and retail applications. The KuDo 6L™ & KuDo 6TL™ features provide highly efficient low glare lighting, extreme power savings, along with low installation and maintennce costs. The sleek profile, flexible design features, and simple mounting process make the KuDo 6L™ & KuDo 6TL™ a perfect choice for Schools, Offices, and many other commercial architects, engineers, contractors and end users.
Affordable Quality
Why take a half step when you can retrofit your old troffer into a brand new LED fixture? Replace decades old tech with modern design.
Simple Install
Patent pending "LIFT RAIL" system provides a quick and easy installation. Low cost of ownership means fast ROI.
Controllable via Smartphone
Order with SMART BLUTM technology and choose the color of white you want at the brightness level you need and much more.
Punched and formed sheet steel reinforced housing with robust end frame. Hinge bolts with stops are mounted in threaded brass barrel inserts on the LED housing body to fit into two lift rails with locking guide slots. Lift, shift and lock housing is fully hidden behind T-Bar on two opposing sides providing a seamless aesthetic. Post painted powder coat white finish. All components are accessible from below for easy maintenance. Lift rails may be screwed to T-Bar (and attached to seismic restraints if necessary) and LED body includes safety aircraft cable tethers. A covered driver platform is secured to back of LED housing and includes wiring quick plate with two knockouts. LED modules are removable with one screw. Lens retention shoulders span full length of housing.
KuDo 6L™ & KuDo 6TL™ luminaires offer high efficacy (see chart); CRI >80; THD <10%; PF >99. Projected life beyond 100,000 hours. LED modules and drivers are offered with a standard 5‐year warranty based on performance under normal conditions (consult warranty for details).
Extruded PMMA diffusers are securely mounted onto continuous metal shoulders by gently squeezing the diffuser and fitting lens grooves over the shoulder edges. Obscure lens provides extreme efficiency while offering full space distribution suitable for typical office or classroom usage. Angled side reflector panels offer pleasing aesthetic.
- 120/277V, or 120/347V power input
- 0-10V DC Dimming Driver (10%-100%)
- BLU DRiVeTM Dimming Driver (1%-100%)
The KuDo 6L™ & KuDo 6TL™ is cCSAus listed for damp locations and ‐20°C to +40°C ambient environments. RoHS compliant.
LED modules comply with IESNA
LM‐79 and LM‐80 standards.
NOTE 1: Specifications subject to change without notice.
NOTE 2: Not all models are DLC certified. Consult factory.
Downloads

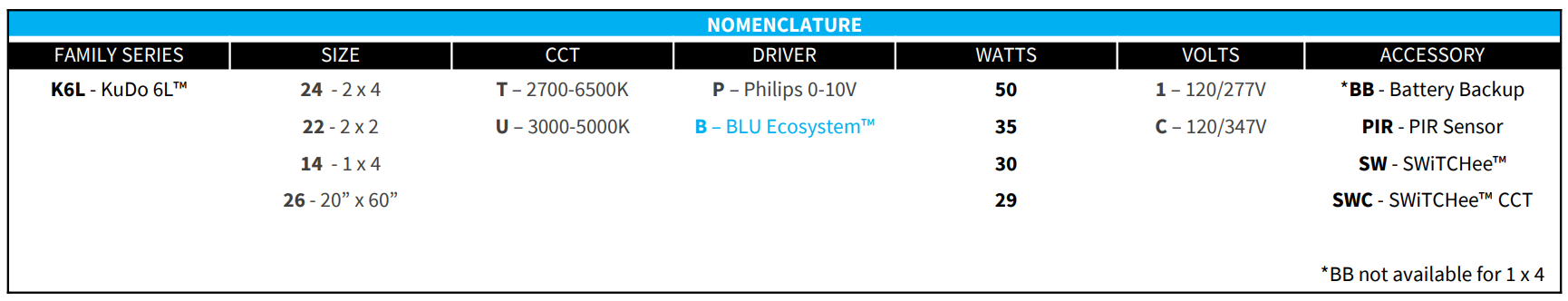

Nomenclature
| FAMILY SERIES | SIZE | CCT | DRIVER | WATTS | VOLTAGE | ACCESSORY |
| K6T = KuDo 6T™ | 24 = 2 x 4 | T = 2700 - 6500 | P = Phillips 0 - 10V | 50 | 1 = 120/277V | *BB-Battery Backup |
| 22 = 2 x 2 | U = 3000-5000K | B = BLU Ecosystem™ | 35 | C = 120/347V | PIR -PIR Sensor | |
| 14 = 1 x 4 | 30 | SW-SWiTCHee™ | ||||
| 26 = 20" x 60" | T = 2700 - 6500 | 29 | SWC -SWiTCHee™CCT | |||
| *BB not available for 1 x 4 |

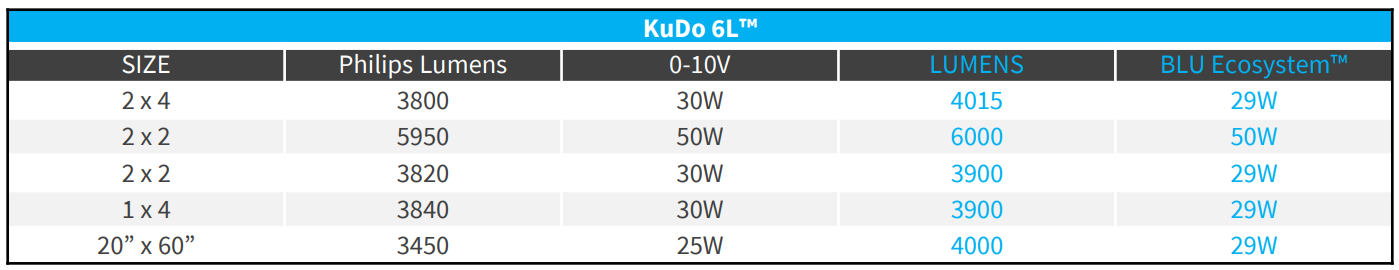

| SIZE | Phillips Lumens | 0 - 10V | LUMENS | BLU Ecosystem™ |
| 2 x 4 | 3800 | 30W | 4015 | 29W |
| 2 x 4 | 5950 | 50W | 6000 | 50W |
| 2 x 2 | 3820 | 30W | 3900 | 29W |
| 2 x 2 | 3840 | 30W | 3900 | 29W |
| 1 x 4 | 3450 | 25W | 4000 | 29W |
Specs
| MODEL | SIZE | CCT | NOMINAL LUMENS | WATTS/EFFICACY | |||
| 120V (W) | 120V (LM/W) | 347V (W) | 347V (LM/W) | ||||
| K624xx40x | 2 x 4 | xx | 5120 | 40 | 130 | 40 | 130 |
| K624xx30x | 2 x 4 | xx | 3800 | 30 | 130 | 30 | 130 |
| K624xx25x | 2 x 4 | xx | 3400 | 25 | 140 | 25 | 140 |
| K622xx25x | 2 x 2 | xx | 3250 | 25 | 130 | 25 | 130 |
| K622xx21x | 2 x 2 | xx | 2600 | 21 | 124 | 21 | 124 |
| K614xx25x | 1 x 4 | xx | 3400 | 25 | 130 | 25 | 130 |
| K614xx21x | 1 x 4 | xx | 2600 | 21 | 130 | 21 | 130 |
| K626xx25x | 20 x 60 | xx | 3450 | 25 | 130 | 25 | 130 |
